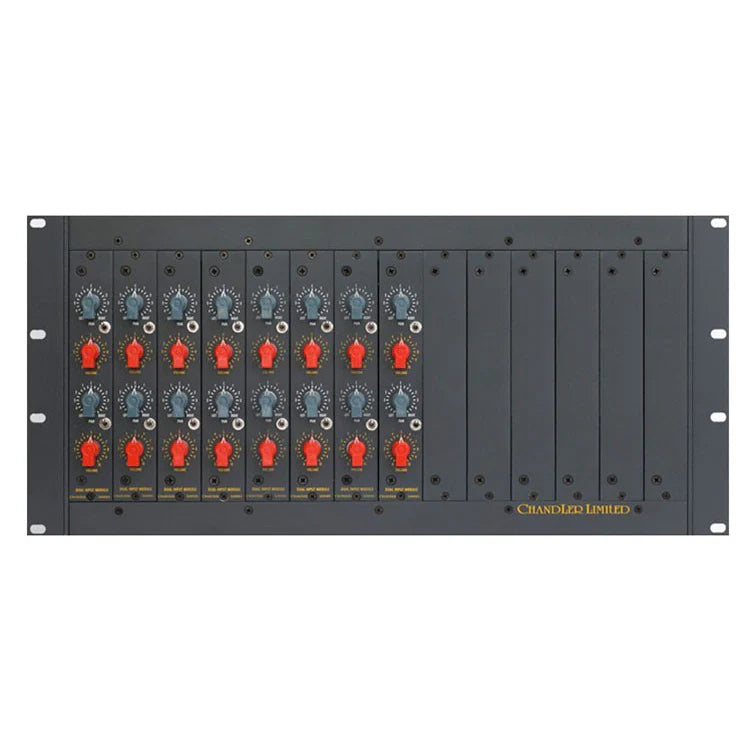

Chandler TG Mini Rack Mixer Expander

Chandler TG Mini Rack Mixer Expander

Regular price £5,790.00 inc VAT
Regular price £0.00 Sale price £5,790.00 inc VAT
With PSU-2:

Available to order, please contact us for details

The Chandler Limited Mini Mixer is the culmination of Chandler's experience working with many types of vintage discrete circuits. The Mini Rack Mixer traces its lineage back to several types of these amplifiers developed in the 60s and 70s that have been Chandlerized for modern usage.

Each Channel of the 16x2 mixer is transformer balanced and driven by the new Chandler line amp, which borrows from Chandler's other products but has been redesigned for use in this mixer. The Mini Mixer is jam-packed with 20 discrete amplifiers and 22 custom wound transformers, giving it a classic sound with all the punch and tone you need for today's digital environment.

In addition to the mixer section, the unit has a full featured Control Room section including Talkback, Speaker switching, Mute, Mono, Dim, External input (also used as an insert point), and separate Control Room and Stereo Buss outs. Mixers are easily expandable to 32 channels or more.

All Mixer units require and function on the PSU-2, Chandler Limited power supply. The PSU-2 has an internal switch for setting voltage to 120V or 220V (115V/230V).



TECHNICAL SPECIFICATIONS

Circuit Type EMI TG, Discrete, Solid-state
Channels 16x2
Feature Set Inputs: 16x mono/line level (output attenuator/level, pan w/pan out switch)
Control Room: Mute, Dim, Mono, Speaker 1/2, EXT. In, Control Room Output (stepped). Stereo Output (stepped)
Time Constant: Selectable, Stepped (7 settings)
BUS/Talkback: Mic Input: 1/4" jack, Volume
Input Impedance: 10kΩ (Ohms)
Expander 1/4" TRS jack
I/O XLR (pin 2 hot), Transformer balanced, custom wound
Power External (PSU-2), Purchased separately
