PMC 6-2 XBD System

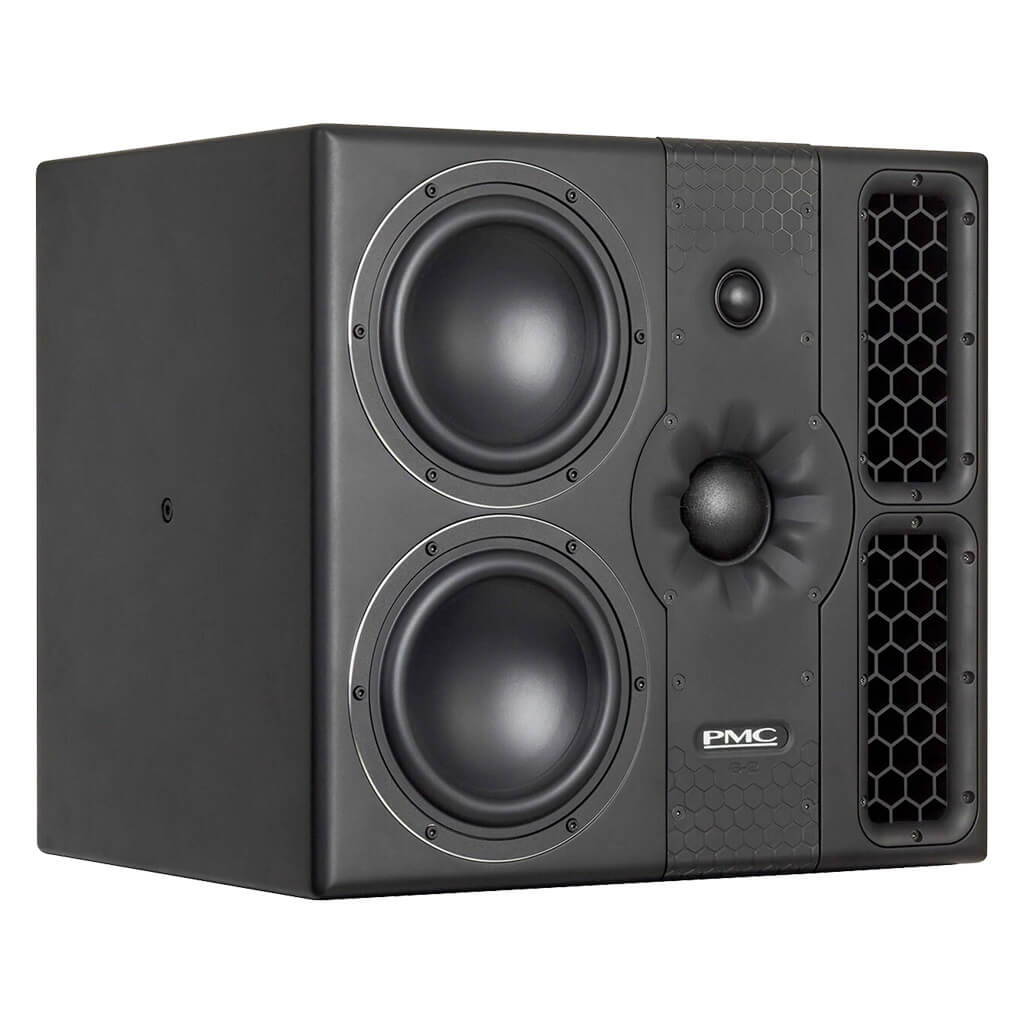

This system combines the PMC6-2's unrivalled clarity and resolution with an active sub to form a perfectly integrated full-range monitoring system that is ideal for all high-end music production. In the case of the PMC6-2, configuring it as an XBD system reinforces the bass output of the main speaker's LF drivers, greatly increasing headroom and extending the bass down to 25Hz, creating a system with a sense of effortless capability.

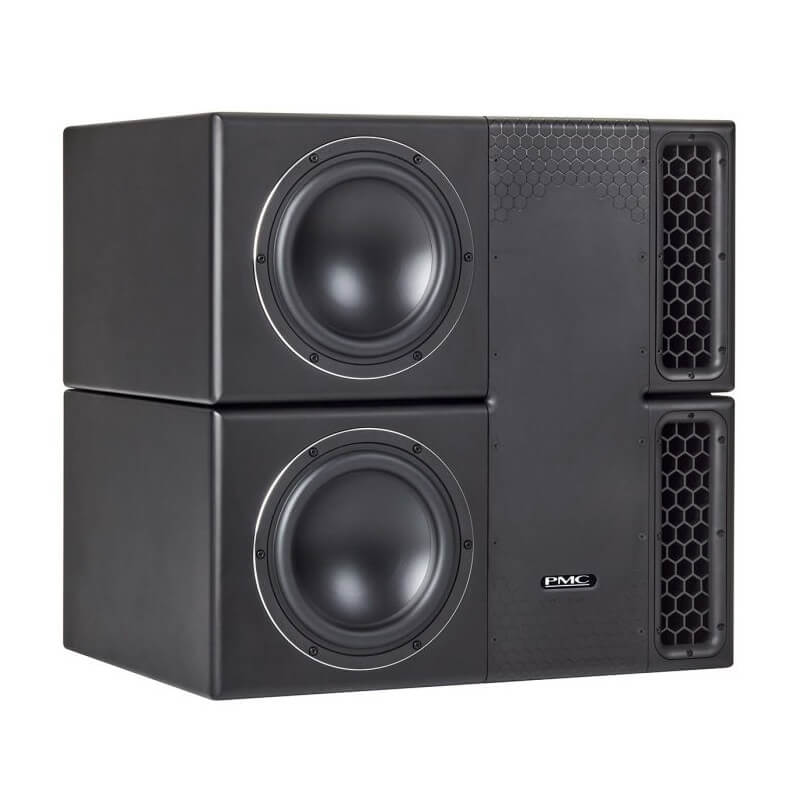

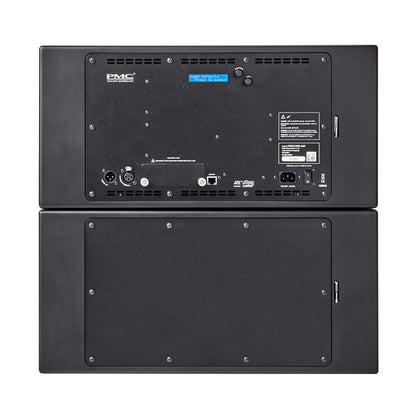

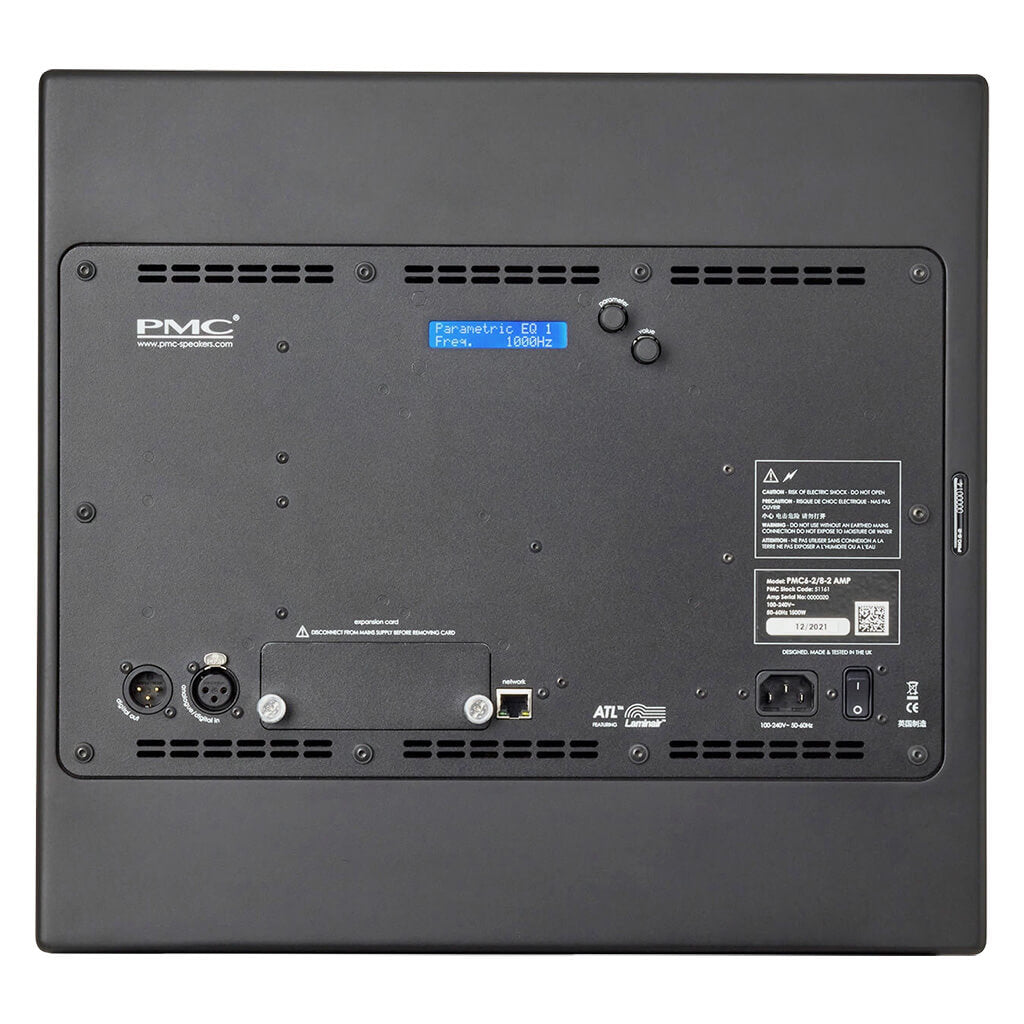

Configuring the PMC6-2 XBD system is simple; connect the input directly to the PMC6-2, and add an AES3 digital cable to carry the main monitor's 'through' output down to the PMC8-2 SUB. The two cabinets can be connected either to a LAN or directly to each other via their network ports. When you select the dedicated 'XBD' mode the DSP seamlessly combines both units into a single, larger-scale monitor. Further detailed configuration can be carried out from the rear-panel controls or using the intuitive SoundAlign browser-based software via the LAN connection, where both speakers appear as a single PMC6-2 XBD unit when linked.

• 3-way active, twin cabinet, mid-field reference monitor with ATL bass loading
• Frequency response: 25Hz - 25kHz (- 3dB @1m full space, on-axis)
• State-of-the-art Class-D amplifiers: HF 400W, MF 400W, LF 2x 400W, SUB(XBD) 2 x 400W
• Analogue / AES3 digital input (16/24-bit, 18 -192kHz sample rate)
• Digital 'through' output (AES3 24-bit 96kHz)
• SoundAlign network control interface for single or group EQ & settings
• Sophisticated DSP crossover, driver protection, EQ, and delay/polarity options
